低温研究用 - 显微镜用特殊温控

- 产品价格:在线询价
- 产品品牌:LCI
- 产品型号:
- 产品规格:台
- 产品类型:LCI韩国
- 咨询电话:021-57790908
我们提供显微镜专用的两种特殊温控台:超高温、超低温.
适合物理材料研究或生医研究.
显微镜使用高温温控台,必须配合长工作距离物镜.同时,使用耐高温的石英玻片.
低温-温控台,温控范围可低到摄氏-196度
技术参数:

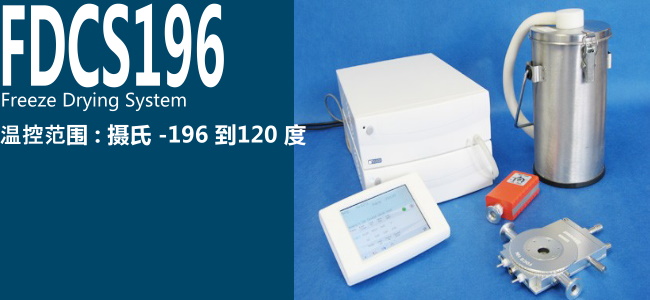

FDCS196 Freeze Drying System Specifications
•Temperature range-196°C to 125°C
•Up to 150°C/min heating
•Temperature stability<0.1°C
•16mm XY sample manipulation
•Sample area 22mm diameter
•Vacuum tight sample chamber to 10-3mbar even with XY manipulation.
•Clamps directly to the microscope substage for stability
•100 Ohm platinum resistor sensor
•Light aperture:1.3mm diameter
•Silver heating block for high thermal conductivity
•Direct injection of the coolant into the silver block
•Single ultra thin lid window:0.3mm

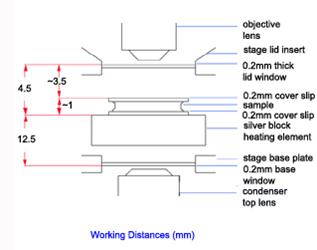

•Objective lens working distance:4.5mm
•Condenser lens minimum working distance:12.5mm
•Range of condenser extension lenses available
•Can be used with all microscope techniques
•Suitable for Confocal,Laser Raman,IR and X-ray
•Stage body size:137x92x22mm
